Pennsylvania Code
Title 67 - TRANSPORTATION
Part I - Department of Transportation
Subpart B - Nonvehicle Code Provisions
Article III - Highways
Chapter 441 - ACCESS TO AND OCCUPANCY OF HIGHWAYS BY DRIVEWAYS AND LOCAL ROADS
Section 441.9 - Driveway layout illustrations
Universal Citation: 67 PA Code ยง 441.9
Current through Register Vol. 54, No. 44, November 2, 2024

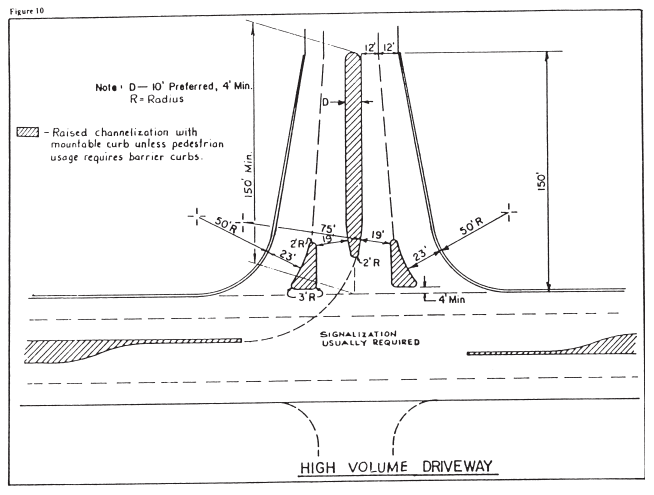

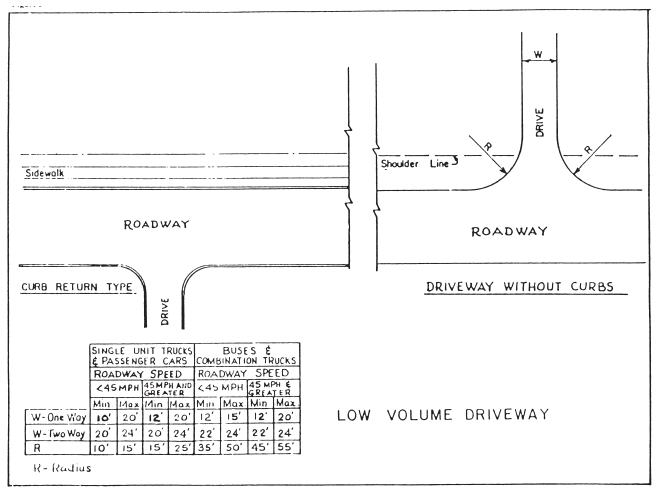

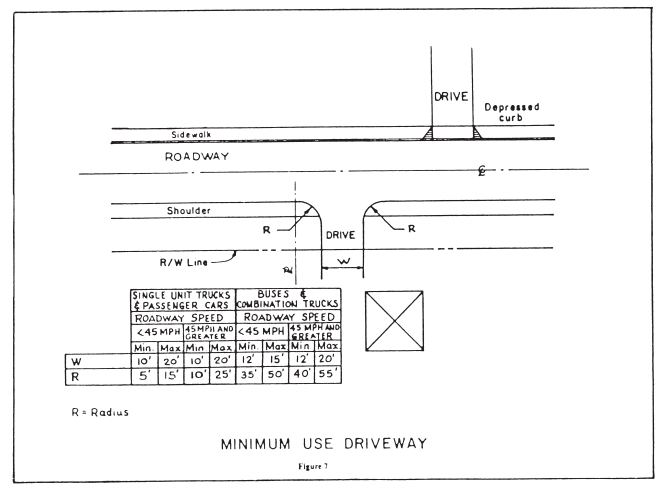

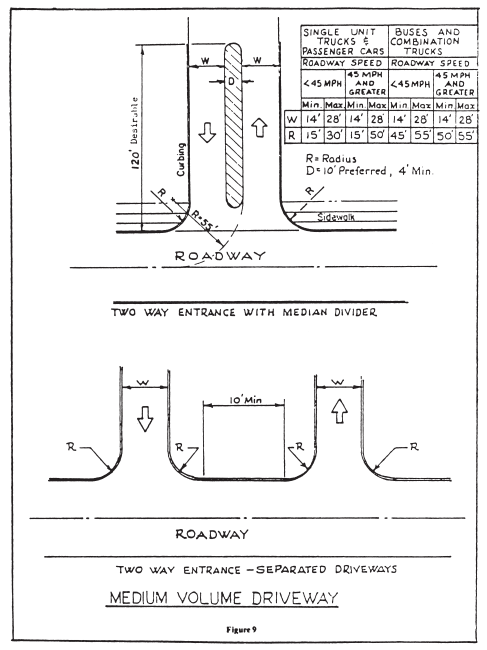

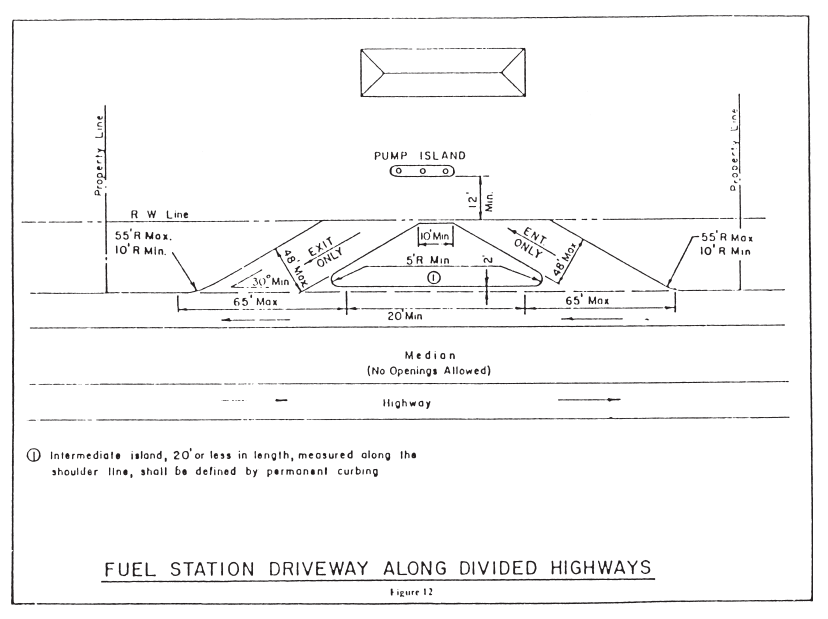

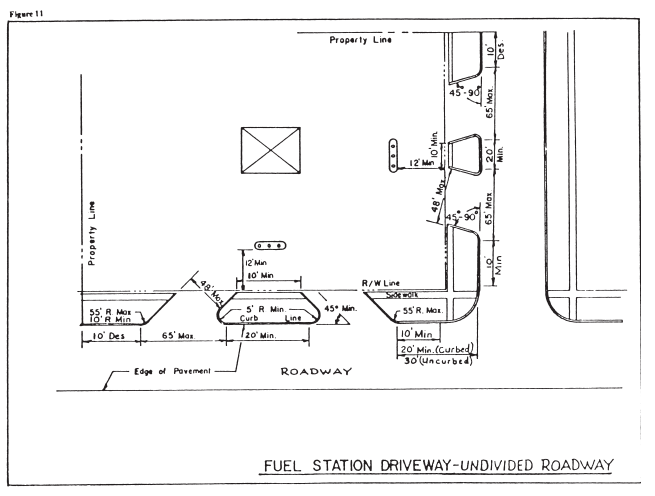

Figures 7 through 12 illustrate and supplement the minimum design requirements described in this chapter. Although site conditions may not allow strict adherence to the dimensions shown in these illustrations, every effort shall be made to design and construct the safest and most efficient access onto the State highway.
