Delaware Administrative Code
Title 2 - Transportation
2000 - Department of Transportation
2400 - Division of Transportation Solutions
2402 - Manual on Uniform Traffic Control Devices (MUTCD)
Part 2 - Signs
Chapter 2C - WARNING SIGNS AND OBJECT MARKERS
Section 2C.50 - Non-Vehicular Warning Signs (W11-2, W11-3, W11-3-DE, W11-4, W11-6, W11-7, W11-9, W11-16 through W11-22, W11-23-DE, W21-11-DE, W21-11P-DE, W21-14-DE, and W21-15-DE)
Current through Register Vol. 28, No. 3, September 1, 2024
Option:

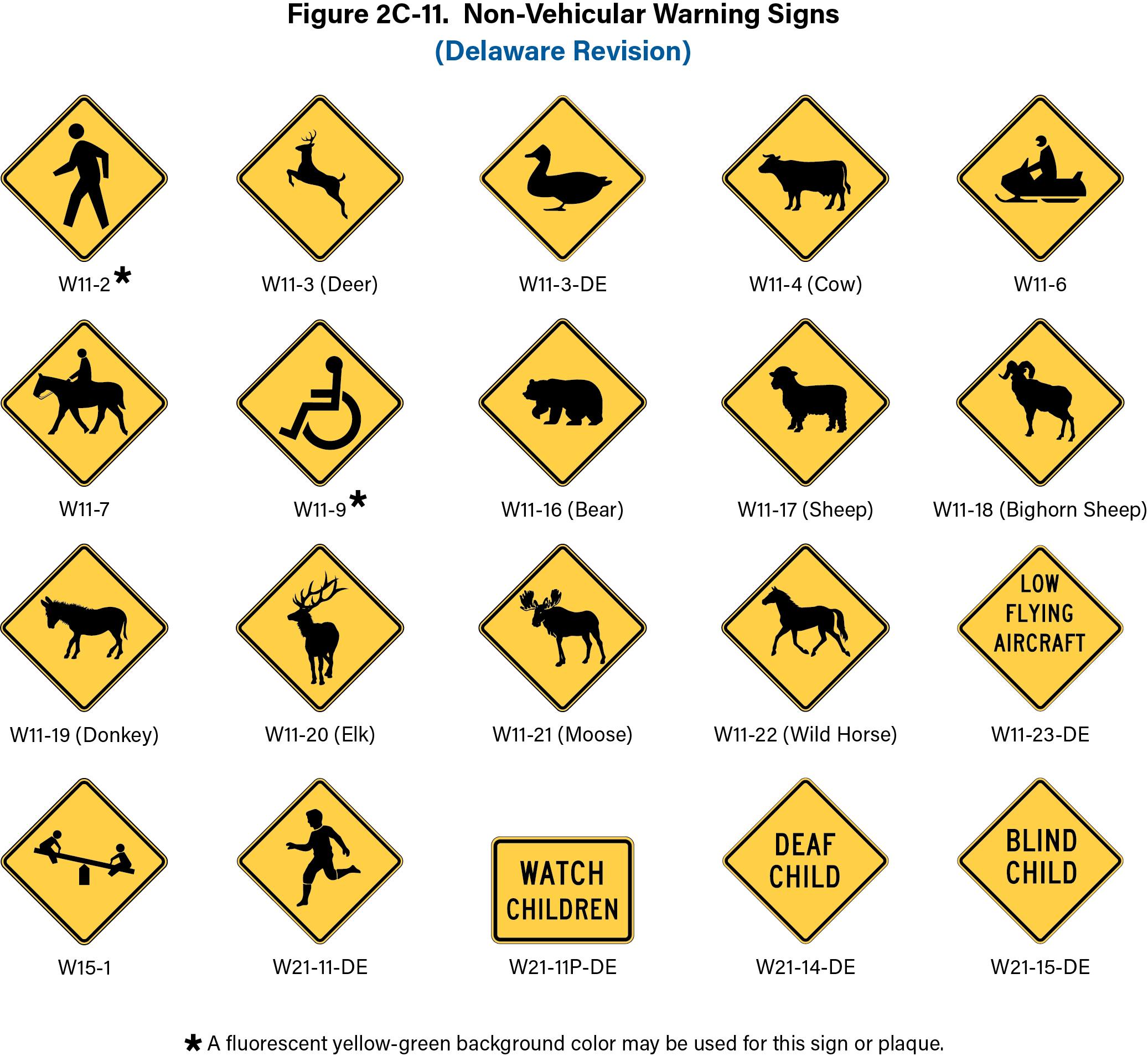

01 (DE Revision) Non-Vehicular Warning (W11-2, W11-3, W11-3-DE, W11-4, W11-6, W11-7, W11-9, W11-16 through W11-22, W11-23-DE, W21-11-DE, W21-11P-DE, W21-14-DE, and W21-15-DE) signs (see Figure 2C-11) may be used to alert road users in advance of locations where unexpected entries into the roadway might occur or where shared use of the roadway by pedestrians, animals, or equestrians might occur.
Support:
02 These conflicts might be relatively confined, or might occur randomly over a segment of roadway.
Guidance:
03 If used in advance of a pedestrian, snowmobile, or equestrian crossing, the W11-2, W11-6, W11-7, and W11-9 signs should be supplemented with plaques (see Section 2C.55) with the legend AHEAD or XX FEET to inform road users that they are approaching a point where crossing activity might occur.
Standard:
04 If a post-mounted W11-2, W11-6, W11-7, or W11-9 sign is placed at the location of the crossing point where pedestrians, snowmobilers, or equestrians might be crossing the roadway, a diagonal downward pointing arrow (W16-7P) plaque (see Figure 2C-12) shall be mounted below the sign. If the W11-2, W11-6, W11-7, or W11-9 sign is mounted overhead, the W16-7P plaque shall not be used.
Option:
05 A Pedestrian Crossing (W11-2) sign may be placed overhead or may be post-mounted with a diagonal downward pointing arrow (W16-7P) plaque at the crosswalk location where Yield Here To (Stop Here For) Pedestrians signs (see Section 2B.11) have been installed in advance of the crosswalk.
Standard:
06 If a W11-2 sign has been post-mounted at the crosswalk location where a Yield Here To (Stop Here For) Pedestrians sign is used on the approach, the Yield Here To (Stop Here For) Pedestrians sign shall not be placed on the same post as or block the road user's view of the W11-2 sign.
Option:
07 An advance Pedestrian Crossing (W11-2) sign with an AHEAD or a distance supplemental plaque may be used in conjunction with a Yield Here To (Stop Here For) Pedestrians sign on the approach to the same crosswalk.
08 The crossing location identified by a W11-2, W11-6, W11-7, or W11-9 sign may be defined with crosswalk markings (see Section 3B.18).
09 The W11-2 and W11-9 signs and their related supplemental plaques may have a fluorescent yellow-green background with a black legend and border.
Guidance:
10 When a fluorescent yellow-green background is used, a systematic approach featuring one background color within a zone or area should be used. The mixing of standard yellow and fluorescent yellow-green backgrounds within a selected site area should be avoided.
Option:
11 A Warning Beacon (see Section 4L.03) may be used with any Non-Vehicular Warning sign to indicate specific periods when the condition or activity is present or is likely to be present, or to provide enhanced sign conspicuity.
12 A supplemental WHEN FLASHING (W16-13P) plaque (see Figure 2C-12) may be used with any Non-Vehicular Warning sign that is supplemented with a Warning Beacon to indicate specific periods when the condition or activity is present or is likely to be present.
