Delaware Administrative Code
Title 2 - Transportation
2000 - Department of Transportation
2400 - Division of Transportation Solutions
2402 - Manual on Uniform Traffic Control Devices (MUTCD)
Part 2 - Signs
Chapter 2C - WARNING SIGNS AND OBJECT MARKERS
Section 2C.28 - BUMP and DIP Signs (W8-1, W8-2)
Universal Citation: 2 DE Admin Code 2C.28
Current through Register Vol. 28, No. 3, September 1, 2024
Guidance:

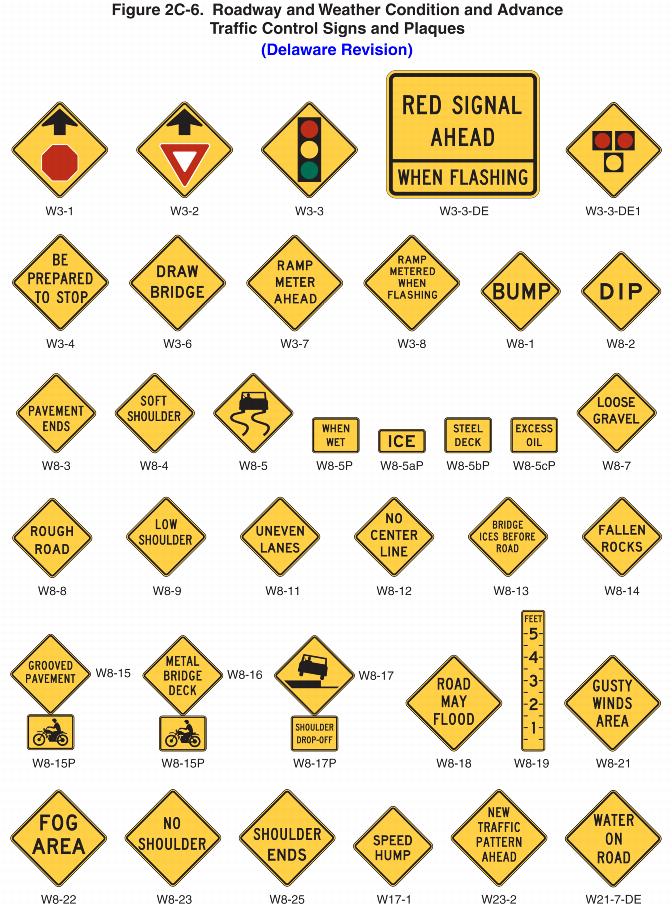

01 BUMP (W8-1) and DIP (W8-2) signs (see Figure 2C-6) should be used to give warning of a sharp rise or depression in the profile of the road.
Option:
02 These signs may be supplemented with an Advisory Speed plaque (see Section 2C.08).
Standard:
03 The DIP sign shall not be used at a short stretch of depressed alignment that might momentarily hide a vehicle.
Guidance:
04 A short stretch of depressed alignment that might momentarily hide a vehicle should be treated as a no-passing zone when center line striping is provided on a two-lane or three-lane road (see Section 3B.02).
