Delaware Administrative Code
Title 2 - Transportation
2000 - Department of Transportation
2400 - Division of Transportation Solutions
2402 - Manual on Uniform Traffic Control Devices (MUTCD)
Part 2 - Signs
Chapter 2C - WARNING SIGNS AND OBJECT MARKERS
Section 2C.20 - NARROW BRIDGE Sign (W5-2)
Universal Citation: 2 DE Admin Code 2C.20
Current through Register Vol. 28, No. 3, September 1, 2024
Guidance:

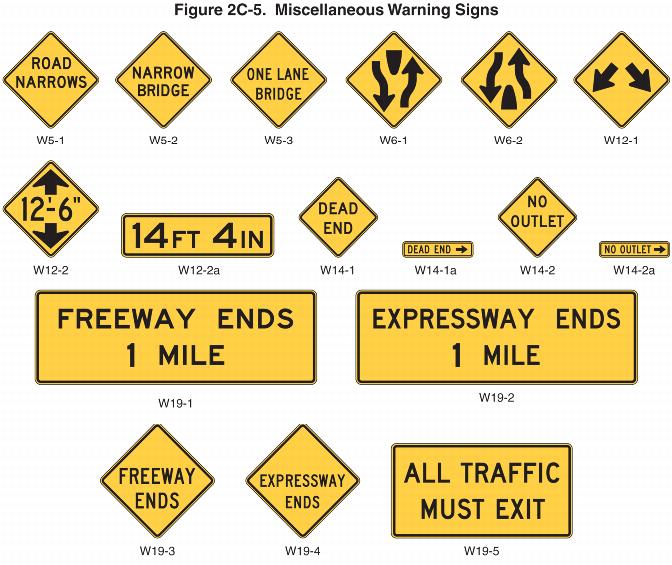

01 A NARROW BRIDGE (W5-2) sign (see Figure 2C-5) should be used in advance of any bridge or culvert having a two-way roadway clearance width of 16 to 18 feet, or any bridge or culvert having a roadway clearance less than the width of the approach travel lanes.
02 Additional emphasis should be provided by the use of object markers, delineators, and/or pavement markings.
Option:
03 A NARROW BRIDGE sign may be used in advance of a bridge or culvert on which the approach shoulders are narrowed or eliminated.
