California Code of Regulations
Title 8 - Industrial Relations
Division 1 - Department of Industrial Relations
Chapter 4 - Division of Industrial Safety
Subchapter 7 - General Industry Safety Orders
Group 13 - Cranes and Other Hoisting Equipment
Article 101 - Slings

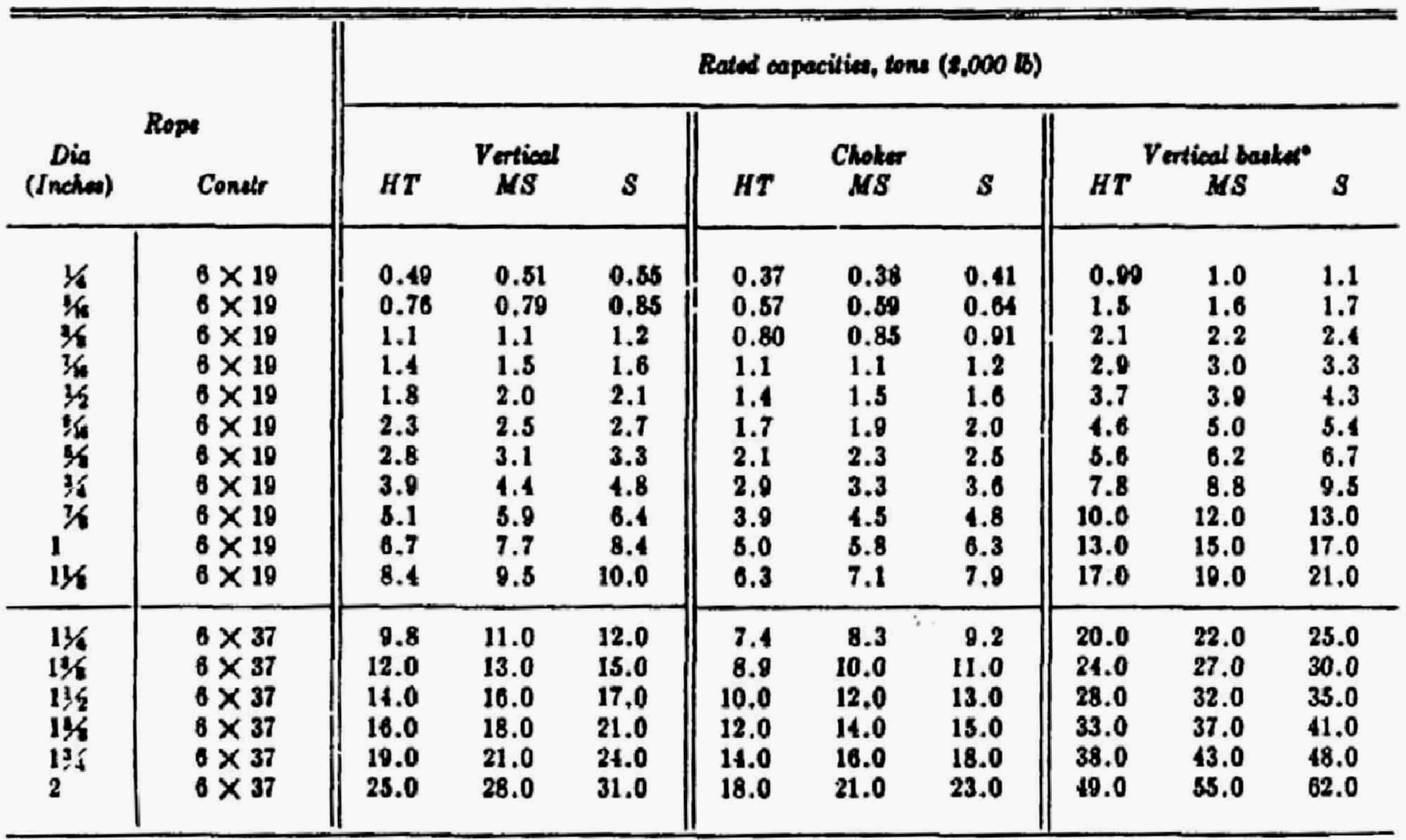

Table S-3 - Rated Capacities for Single Leg Slings 6 X 19 and 6 X 37 Classification Improved Plow Steel Grade Rope with Fiber Core (FC)

Click here to view image

HT = Hand Tucked Splice and Hidden Tuck Splice.

For hidden tuck splice (IWRC) use values in HT columns.

MS = Mechanical Splice

S = Swaged or Zinc Poured Socket

* These values only apply when the D/d ratio for HT slings is 10 or greater, and for MS and S slings is 20 or greater where:

D = Diameter of curvature around which the body of the sling is bent.

d = Diameter of rope.

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.
