California Code of Regulations
Title 8 - Industrial Relations
Division 1 - Department of Industrial Relations
Chapter 4 - Division of Industrial Safety
Subchapter 7 - General Industry Safety Orders
Group 13 - Cranes and Other Hoisting Equipment
Article 101 - Slings

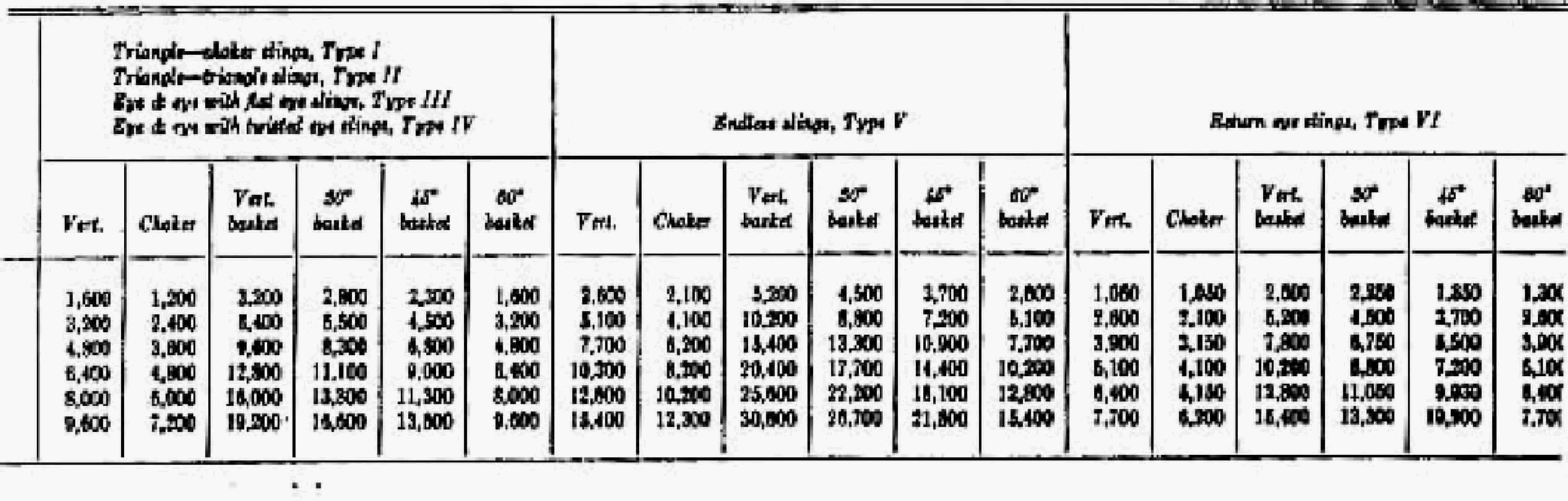

Table S-24 - Rated Capacity in Pounds Synthetic Web Slings 1,600 Lbs. Per Inch of Width Single Ply

Universal Citation: 8 CA Code of Regs S-24

Current through Register 2024 Notice Reg. No. 38, September 20, 2024

Click here to view image

(1) All angles shown are measured from the vertical.

(2) Capacities for intermediate widths not shown may be obtained by interpolation.

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.
