California Code of Regulations
Title 8 - Industrial Relations
Division 1 - Department of Industrial Relations
Chapter 4 - Division of Industrial Safety
Subchapter 7 - General Industry Safety Orders
Group 13 - Cranes and Other Hoisting Equipment
Article 101 - Slings

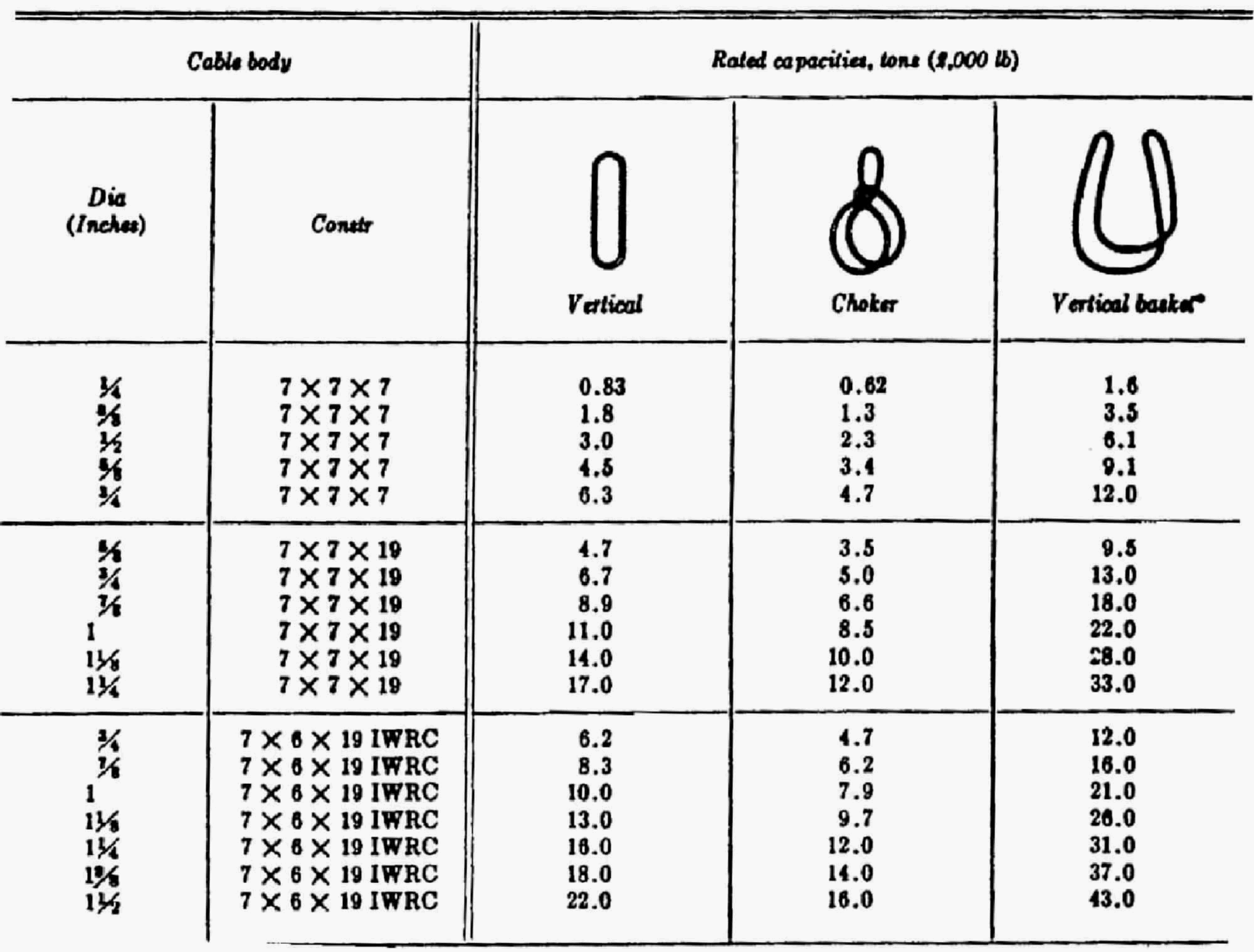

Table S-14 - Rated Capacities for Cable Laid Endless Slings-Mechanical Joint
7 X 7 X 7 and 7 X 7 X 19 Constructions Galvanized Aircraft Grade Rope7 X 6 X 19 IWRC Construction Improved Plow Steel Grade Rope
*These values only apply when the D/d value is 5 or greater where:
D = Diameter of curvature around which cable body is bent.
d = Diameter of cable body.
1. New
NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).
2.
Change without regulatory effect adding asterisk to precede footnote filed
4-13-2004 pursuant to section
100, title 1, California Code of
Regulations (Register 2004, No. 16).
Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.
