California Code of Regulations
Title 8 - Industrial Relations
Division 1 - Department of Industrial Relations
Chapter 4 - Division of Industrial Safety
Subchapter 7 - General Industry Safety Orders
Group 1 - General Physical Conditions and Structures
Article 6 - Powered Platforms and Equipment for Building Maintenance
Appendix B to Article 6

Exhibits (Advisory).

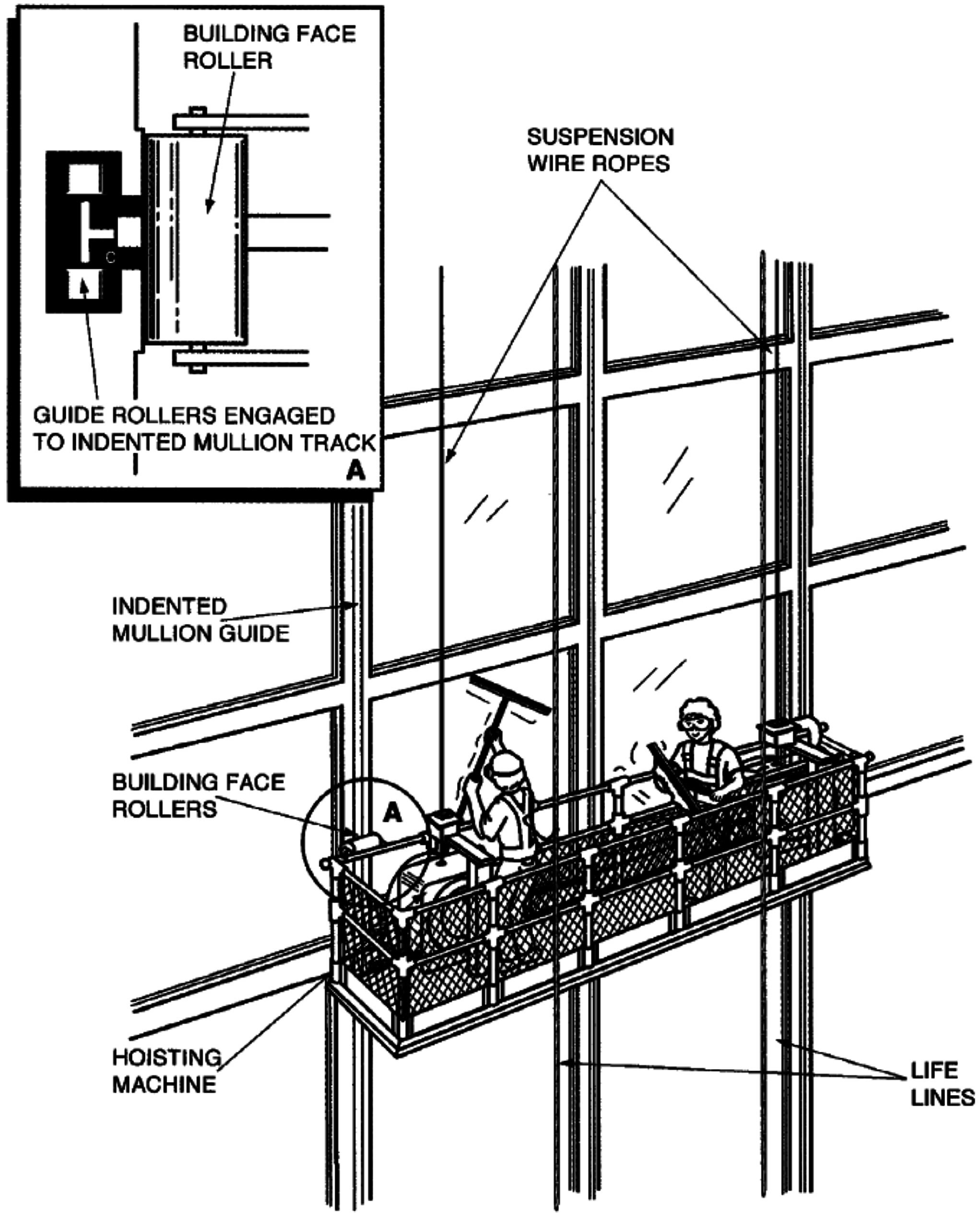

The three drawings in Appendix B illustrate typical platform stabilization systems which are addressed in the standard. The drawings are to be used for reference purposes only, and do not illustrate all the mandatory requirements for each system.Figure 1. Typical Self-Powered Platform--Continuous External or Indented Mullion Guide System

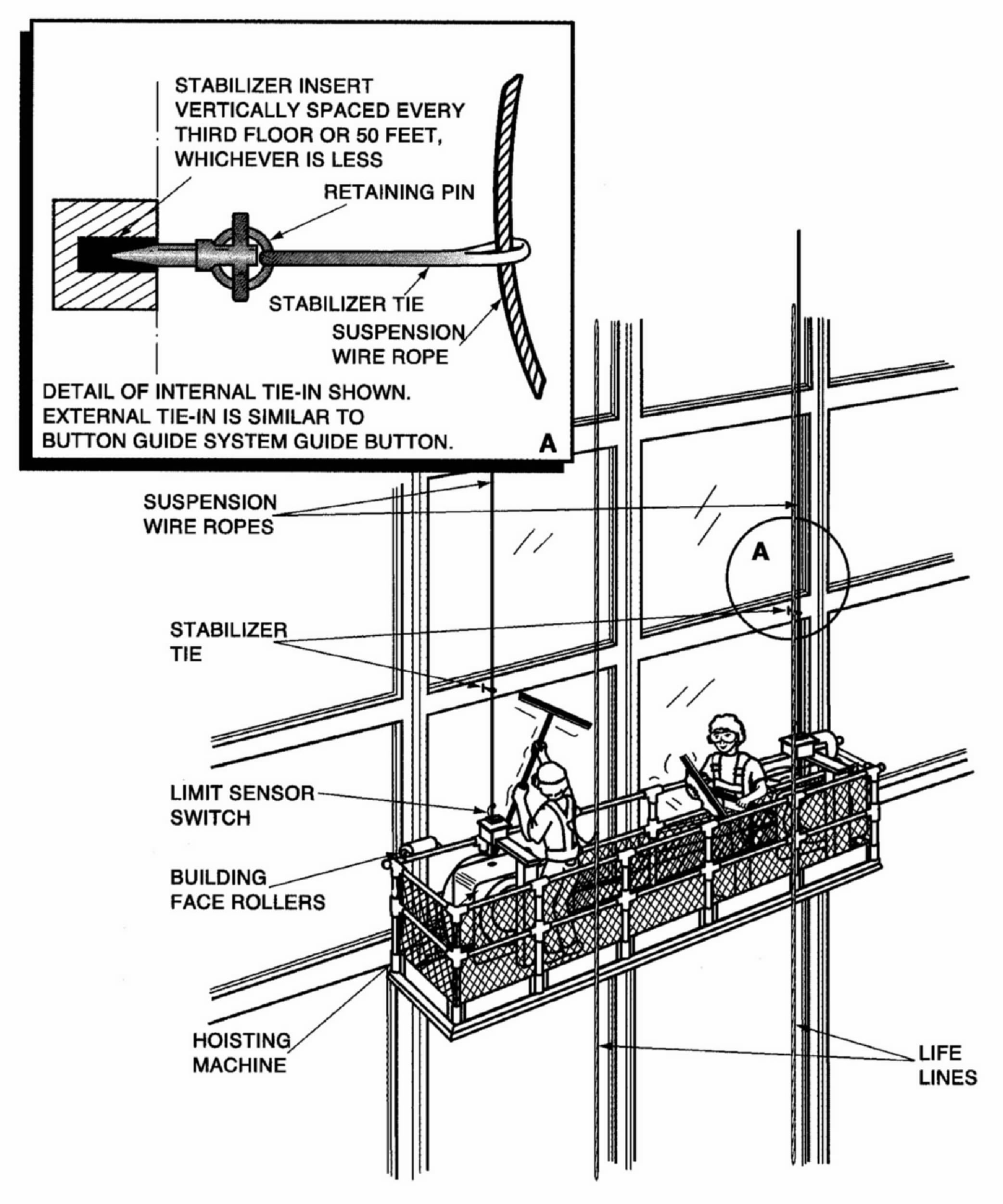

Click here to view imageFigure 2. Typical Self-Powered Platform--Intermittent Tie-In System

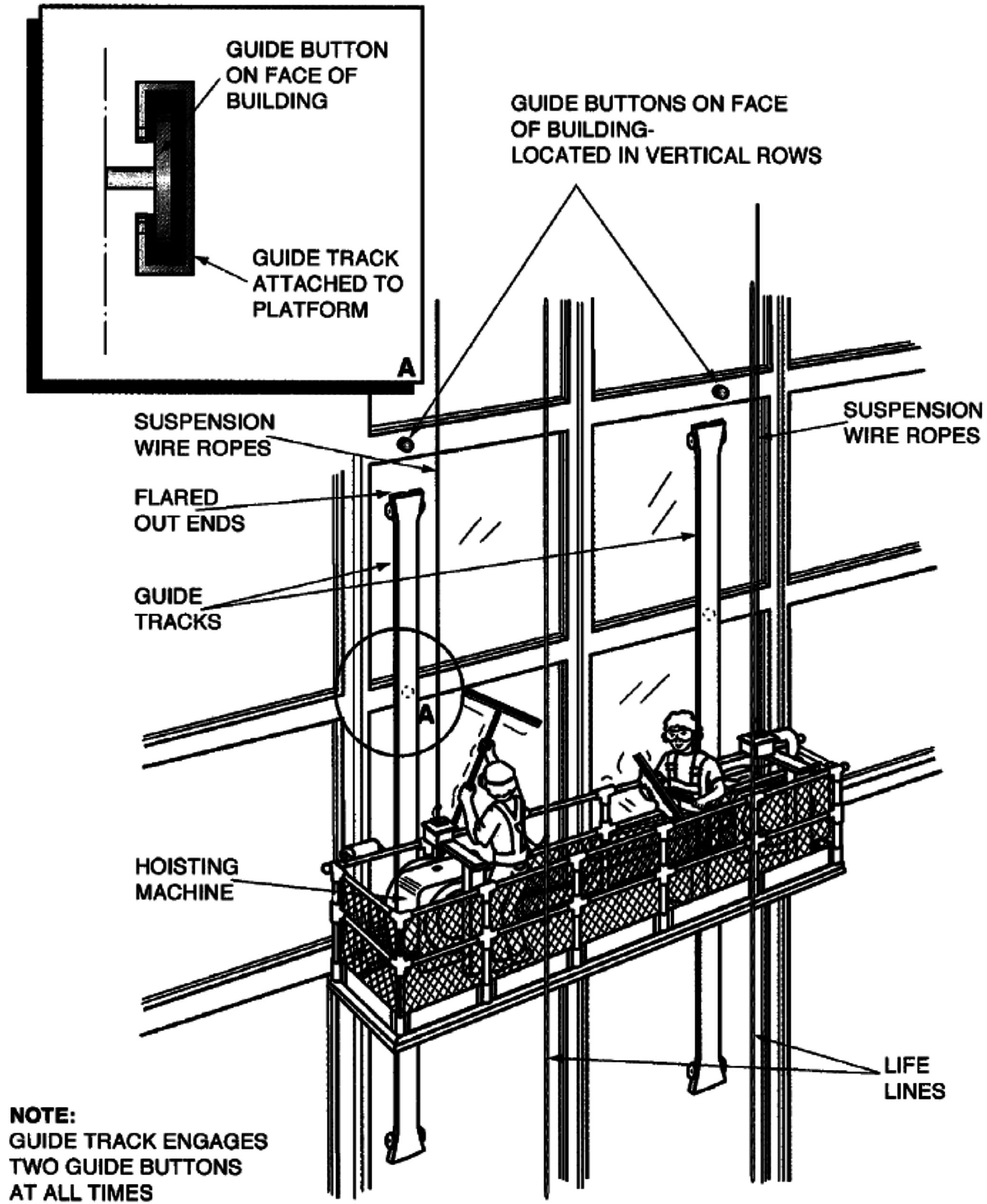

Click here to view imageFigure 3. Typical Self-Powered Platform--Button Guide System

Click here to view image

Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code; and Section 18943(c), Health and Safety Code.
