California Code of Regulations
Title 8 - Industrial Relations
Division 1 - Department of Industrial Relations
Chapter 4 - Division of Industrial Safety
Subchapter 7 - General Industry Safety Orders
Group 1 - General Physical Conditions and Structures
Article 2 - Standard Specifications

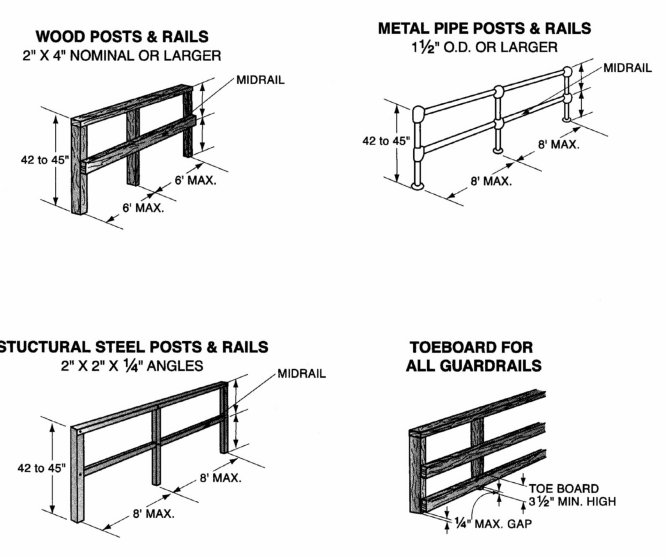

Figure SG-1 - Some Acceptable Industrial Guardrails and Toeboards

Click here to view image

1. Renumbered from Figure IG-1 and amendment filed 9-3-76; effective thirtieth day thereafter (Register 76, No. 36).
2. Renumbered from Figure G-1 and amendment filed 10-5-77; effective thirtieth day thereafter (Register 77, No. 41).
3. New NOTE filed 5-25-83; effective thirtieth day thereafter (Register 83, No. 22).
4. Change without regulatory effect providing more legible illustration for Figure SG-1 filed 3-2-2009 pursuant to section 100, title 1, California Code of Regulations (Register 2009, No. 10).

Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.
