California Code of Regulations
Title 8 - Industrial Relations
Division 1 - Department of Industrial Relations
Chapter 4 - Division of Industrial Safety
Subchapter 4 - Construction Safety Orders
Article 29 - Erection and Construction
Appendix A - to Section 1710 Illustrations of Bridging Terminus Points: Non-Mandatory Guidelines for Complying with Sections 1710(h)(1)(J) and 1710(h)(3)(E)

Universal Citation: 8 CA Code of Regs A
Current through Register 2024 Notice Reg. No. 38, September 20, 2024

Click here to view image

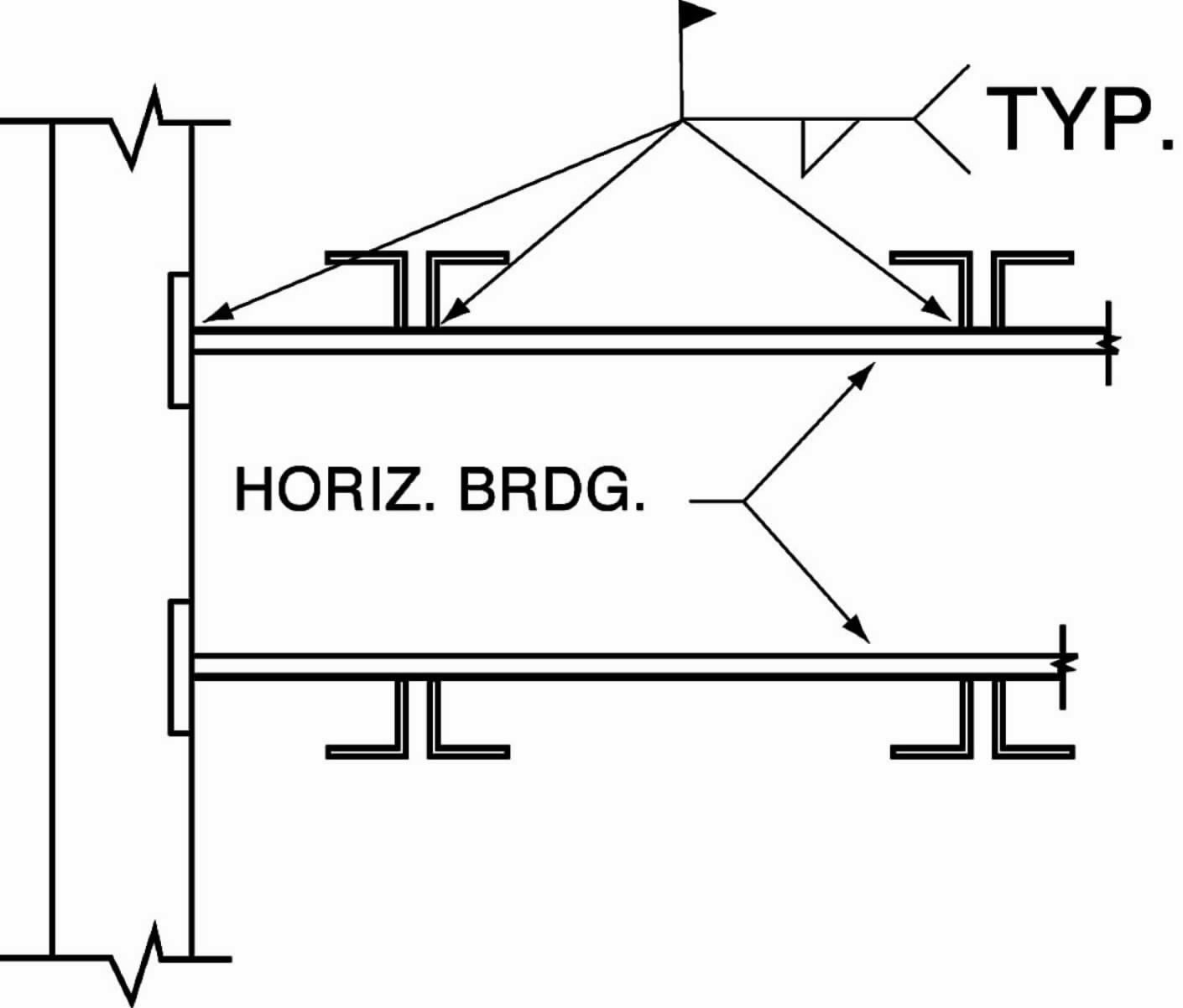

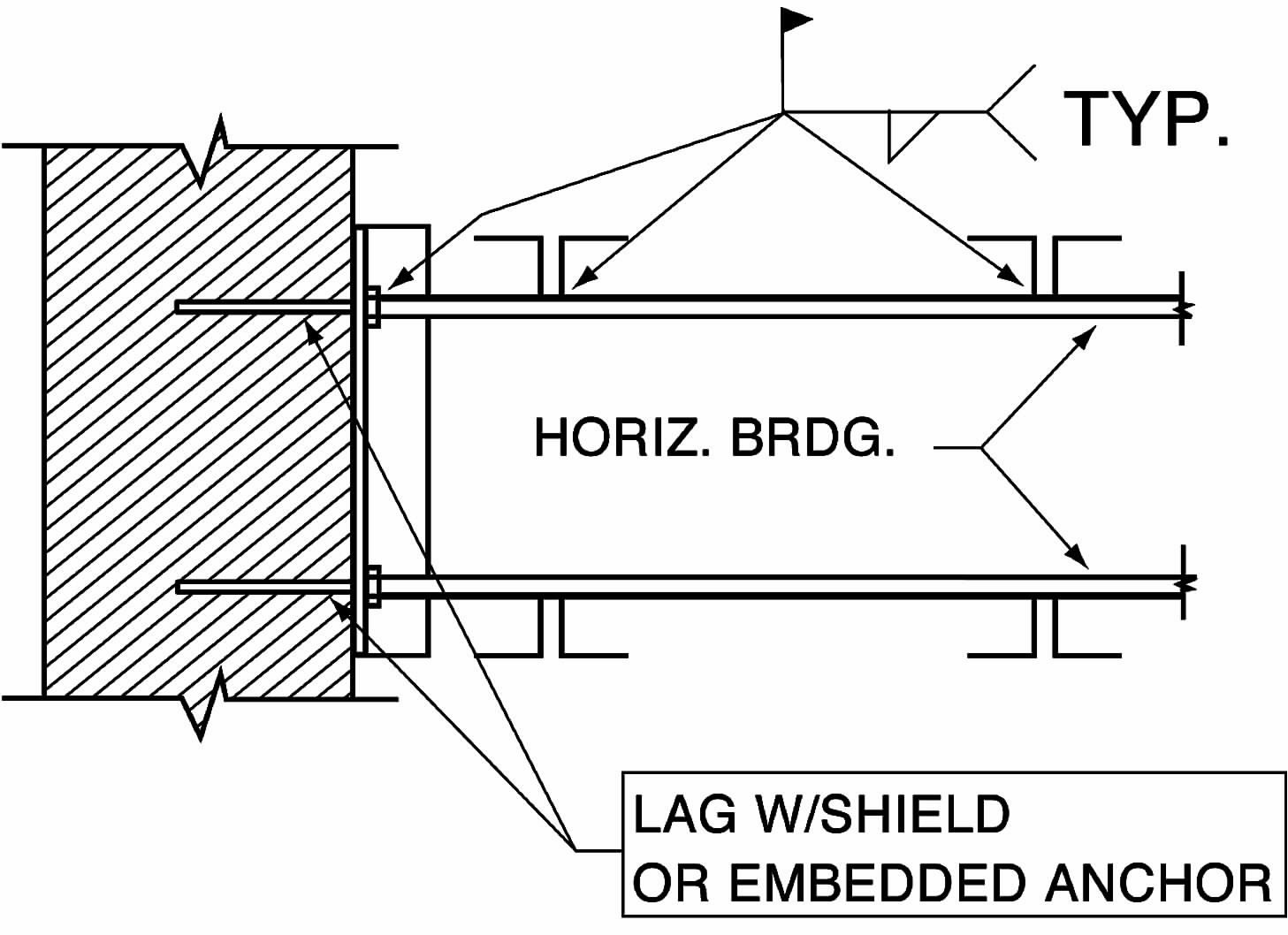

Horizontal Bridging Terminus at Wall

Click here to view image

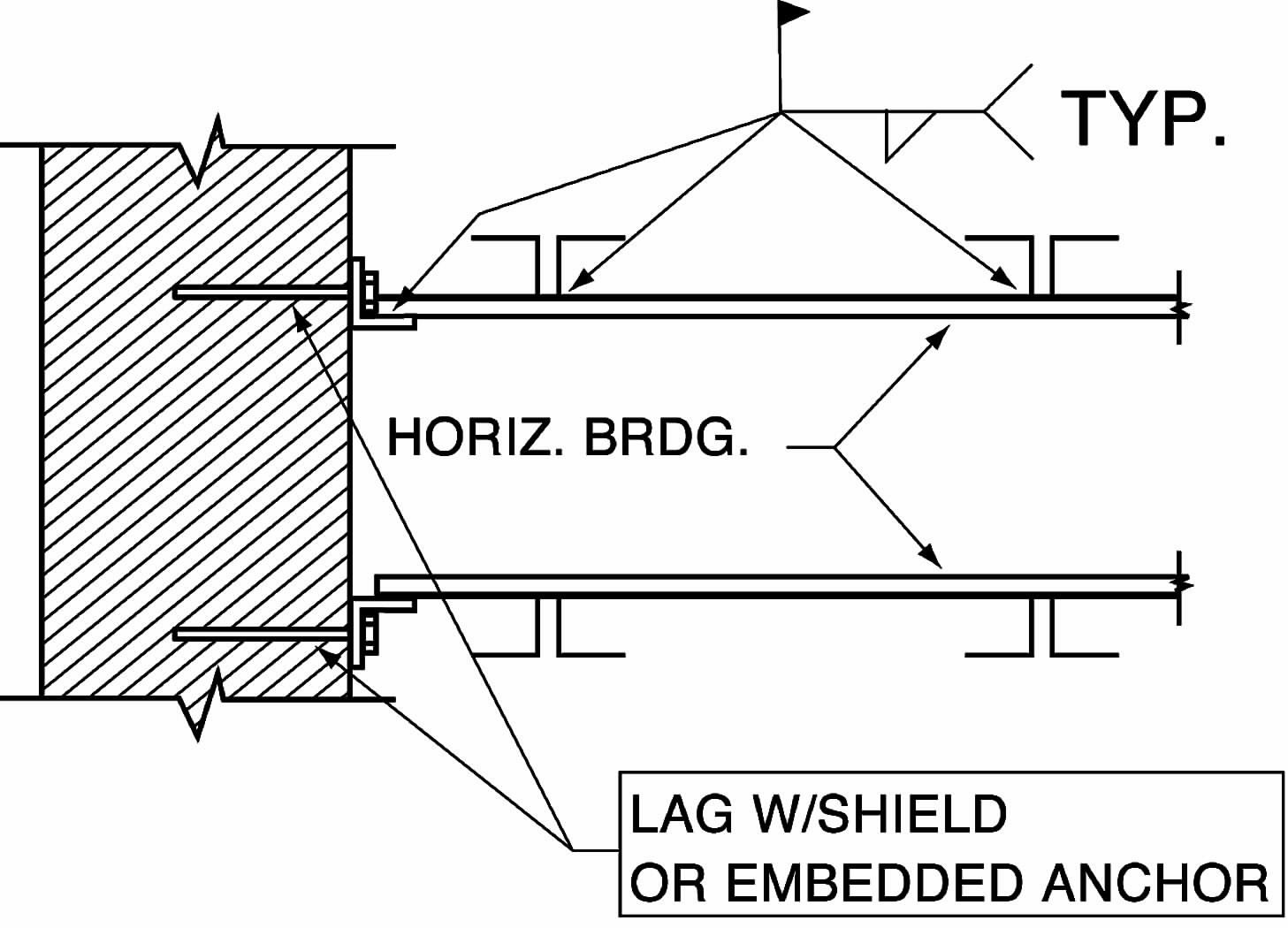

Horizontal Bridging Terminus at Wall

Click here to view image

Horizontal Bridging Terminus at Panel Wall

Click here to view image

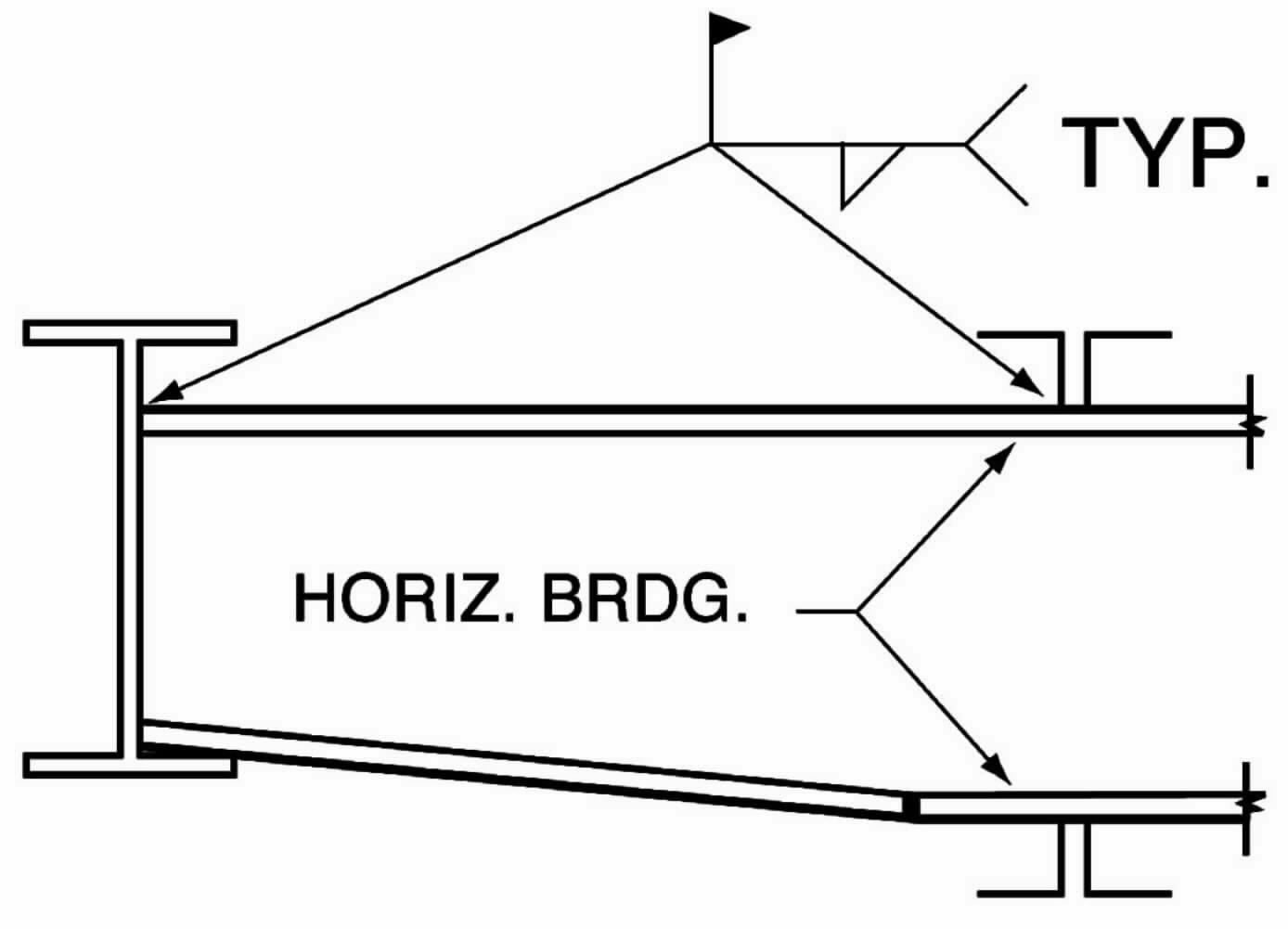

Horizontal Bridging Terminus at Structural Shape

Click here to view image

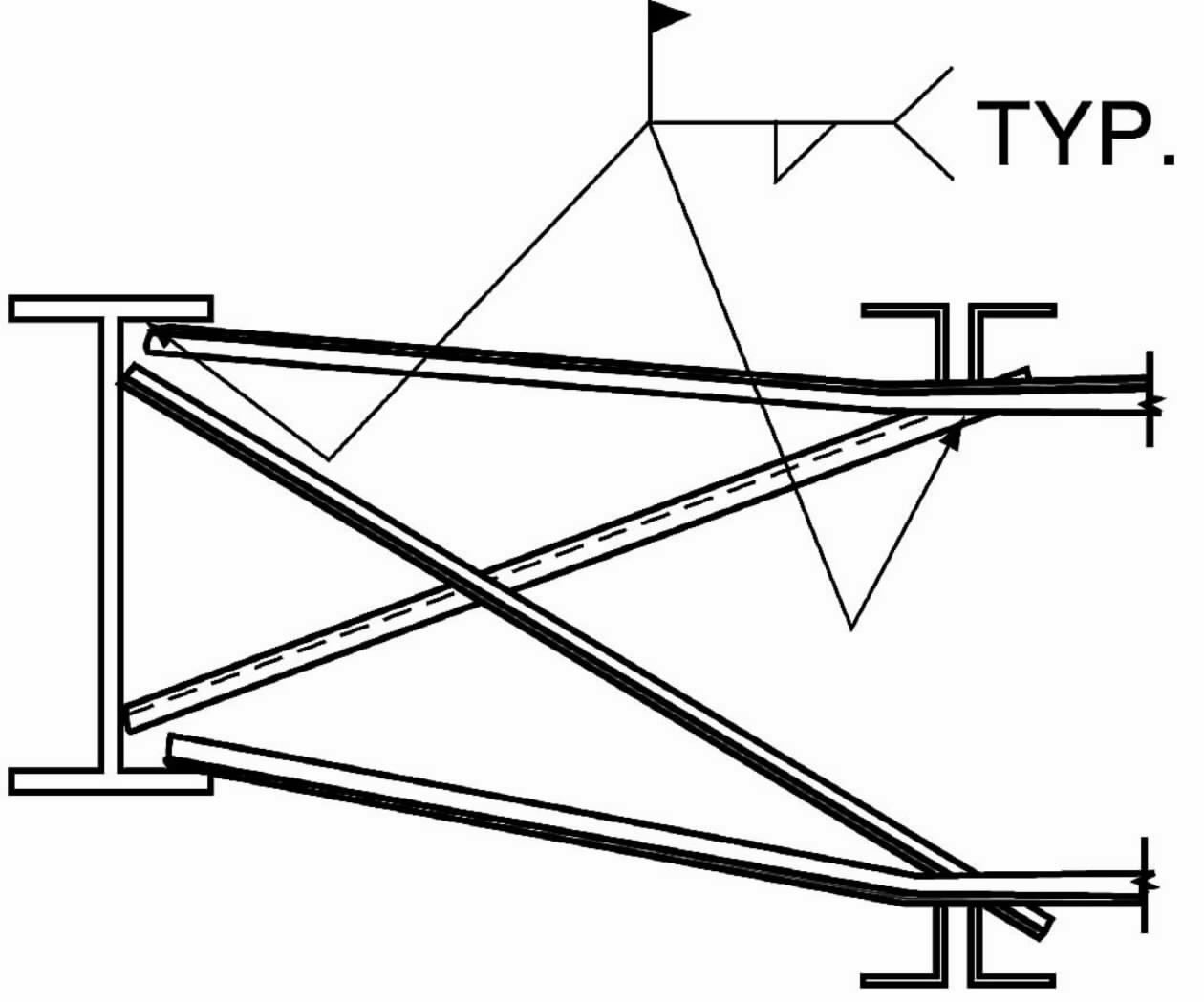

Horizontal Bridging Terminus at Structural Shape with Optimal "X-Bridging"

Click here to view image

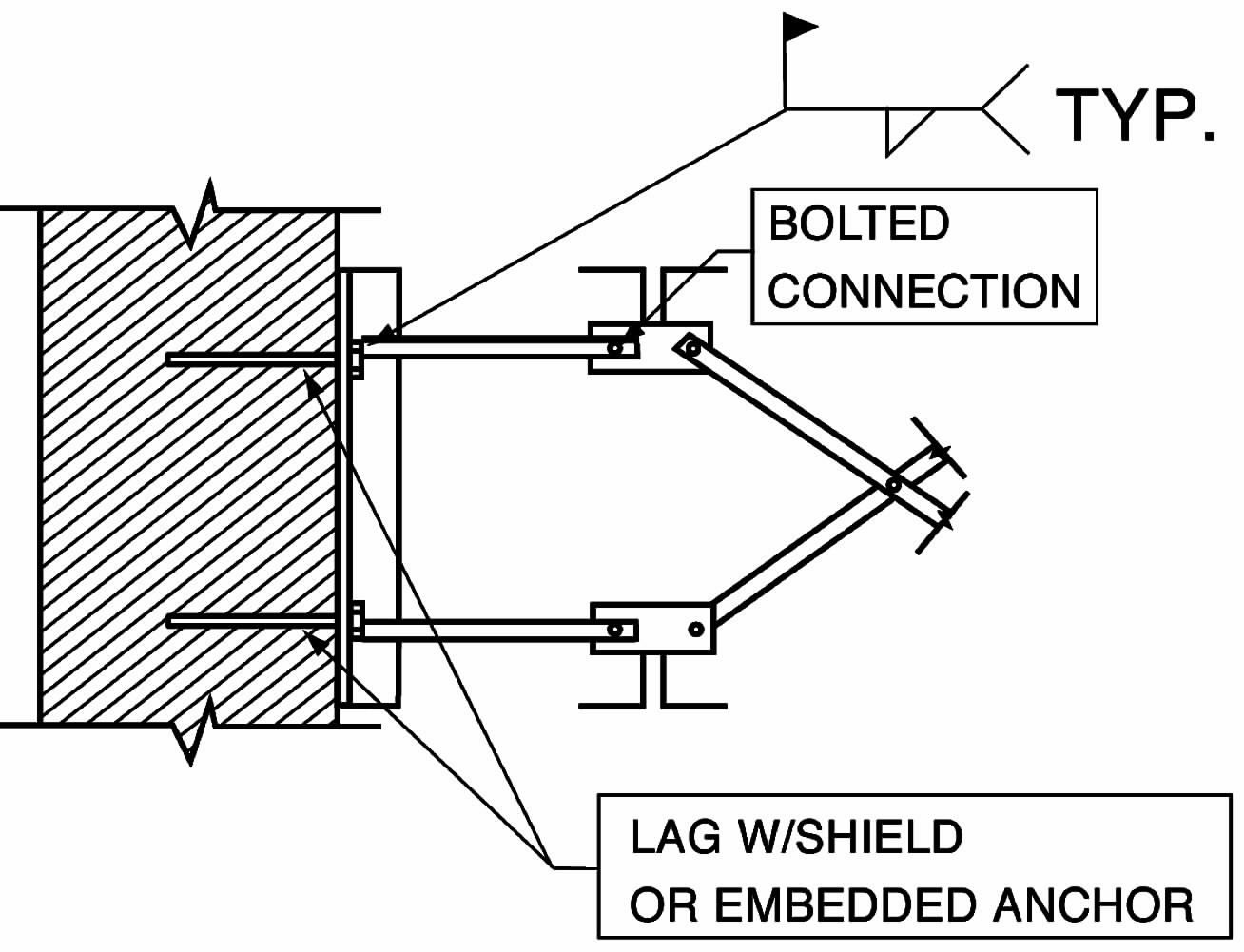

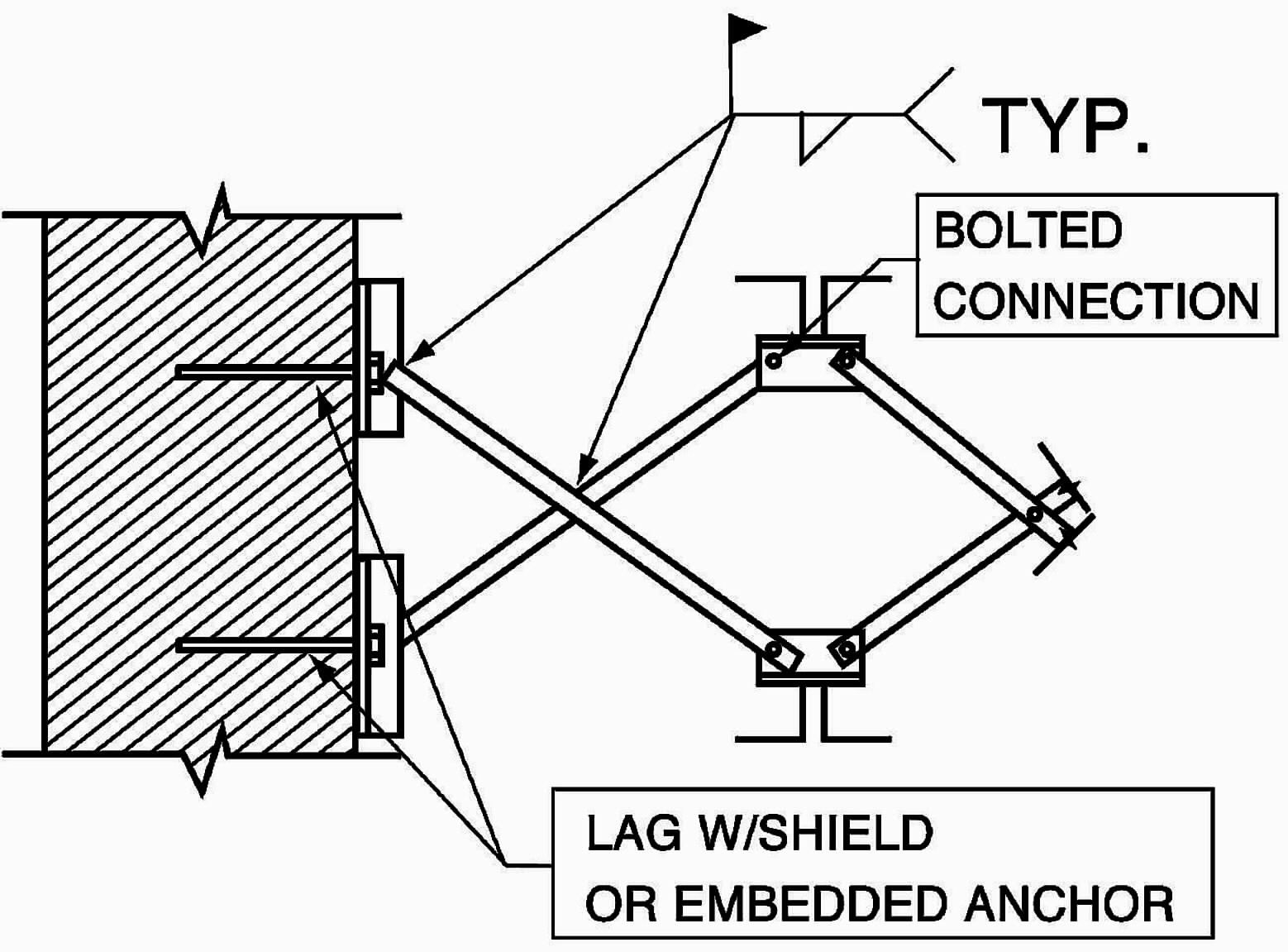

Bolted Diagonal Bridging Terminus at Wall

Click here to view image

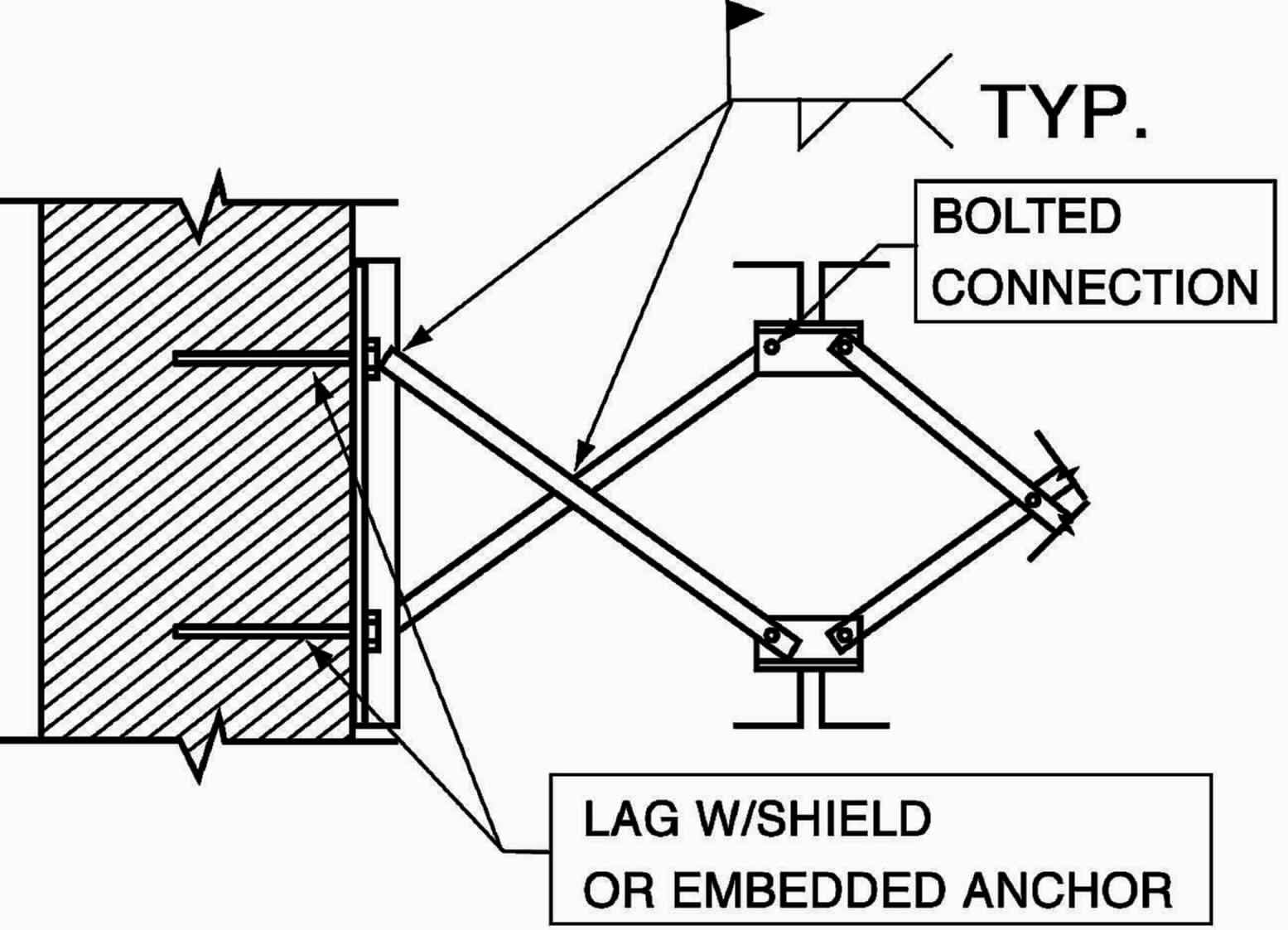

Bolted Diagonal Bridging Terminus at Wall

Click here to view image

Bolted Diagonal Bridging Terminus at Wall

Click here to view image

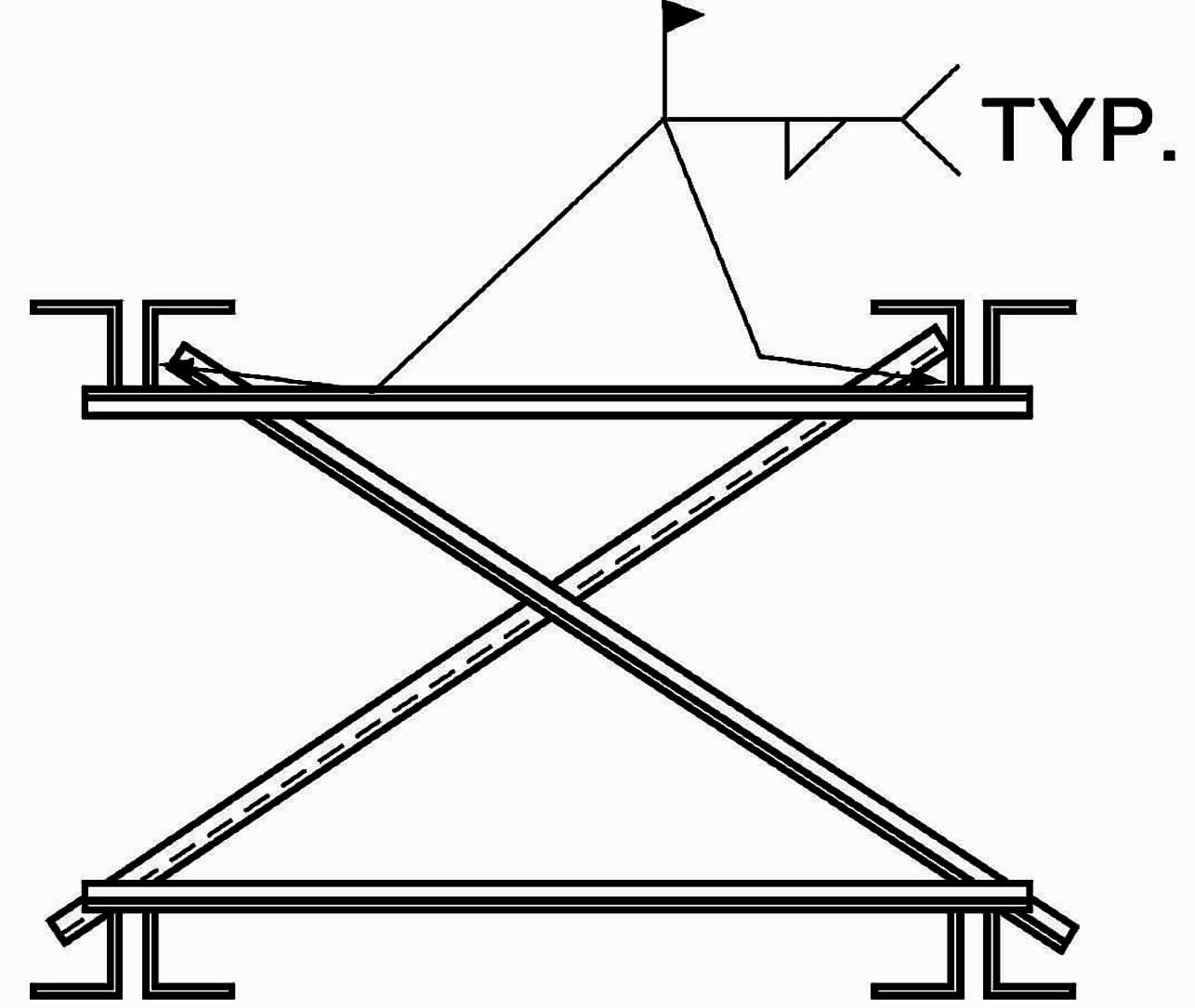

Joists Pair Bridging Terminus Point

Click here to view image

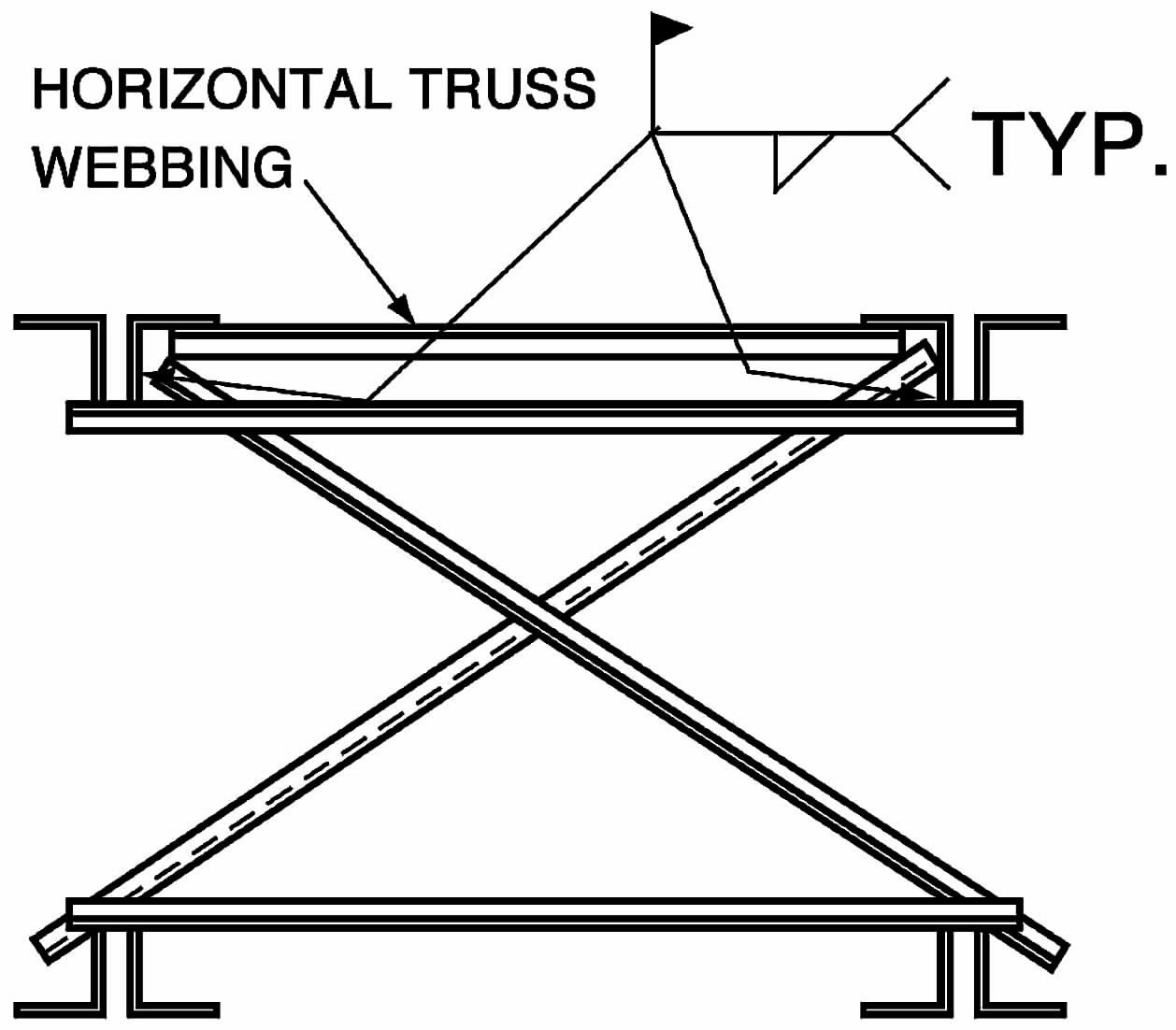

Joists Pair Bridging Terminus Point w/Horiz. Truss

Click here to view image

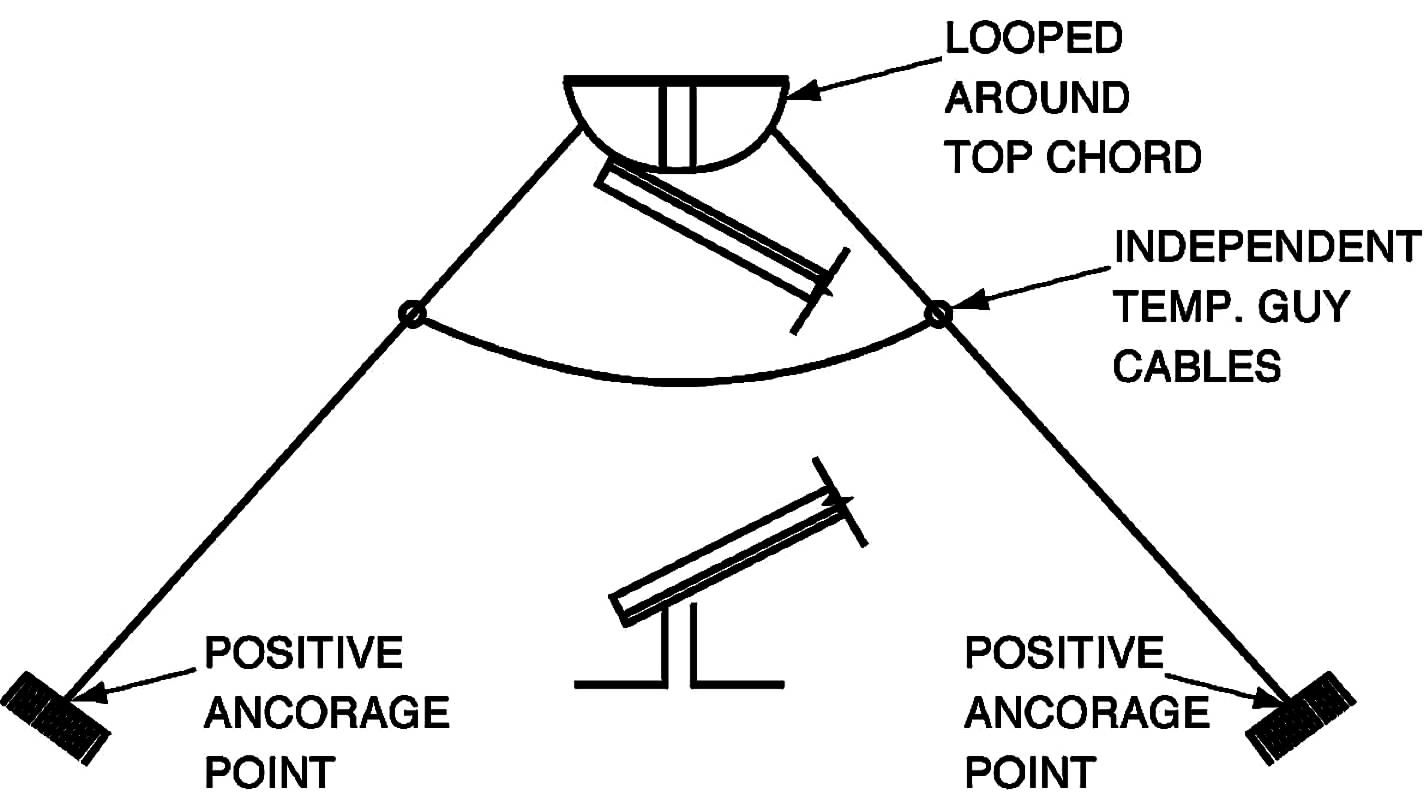

Horizontal Bridging Terminus Point Secured by Temp Guy Cables

Click here to view image

Diagonal Bridging Terminus Point Secured by Temp Guy Cables

Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.
