California Code of Regulations
Title 8 - Industrial Relations
Division 1 - Department of Industrial Relations
Chapter 4 - Division of Industrial Safety
Subchapter 13 - Logging and Sawmill Safety Orders
Appendix A

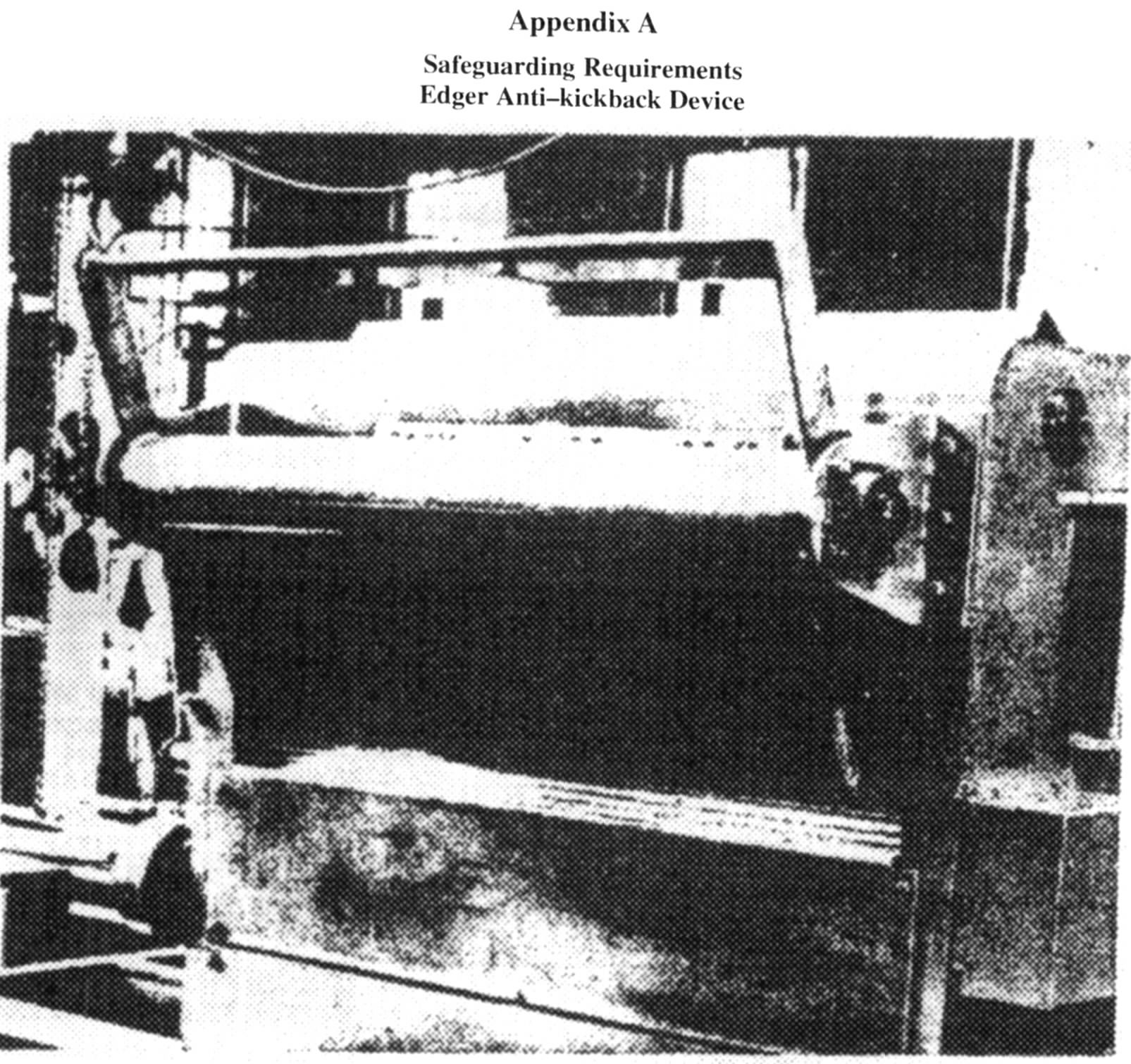

Suggested Anti-Kickback Device Applied to Gang Edgers with Saw Arbors Mounted Below Feed Rolls.
A: Fingers shall extend across full length of rolls.
B: Fingers shall clear the bottom feed roll by 1/2 -inch.
C: Fingers shall be spaced 3/8 -inch maximum.
D: Finger shaft 1 13/16 -inch diameter minimum (heavy duty, high powered edgers 1 15/16 -inch diameter).
E: Fingers shall be installed so that they set at not more than 40 degrees to vertical on the maximum size stack the edger will cut.
F: Finger lift controls shall be mounted to the side of the edger and require constant pressure to hold the fingers up.

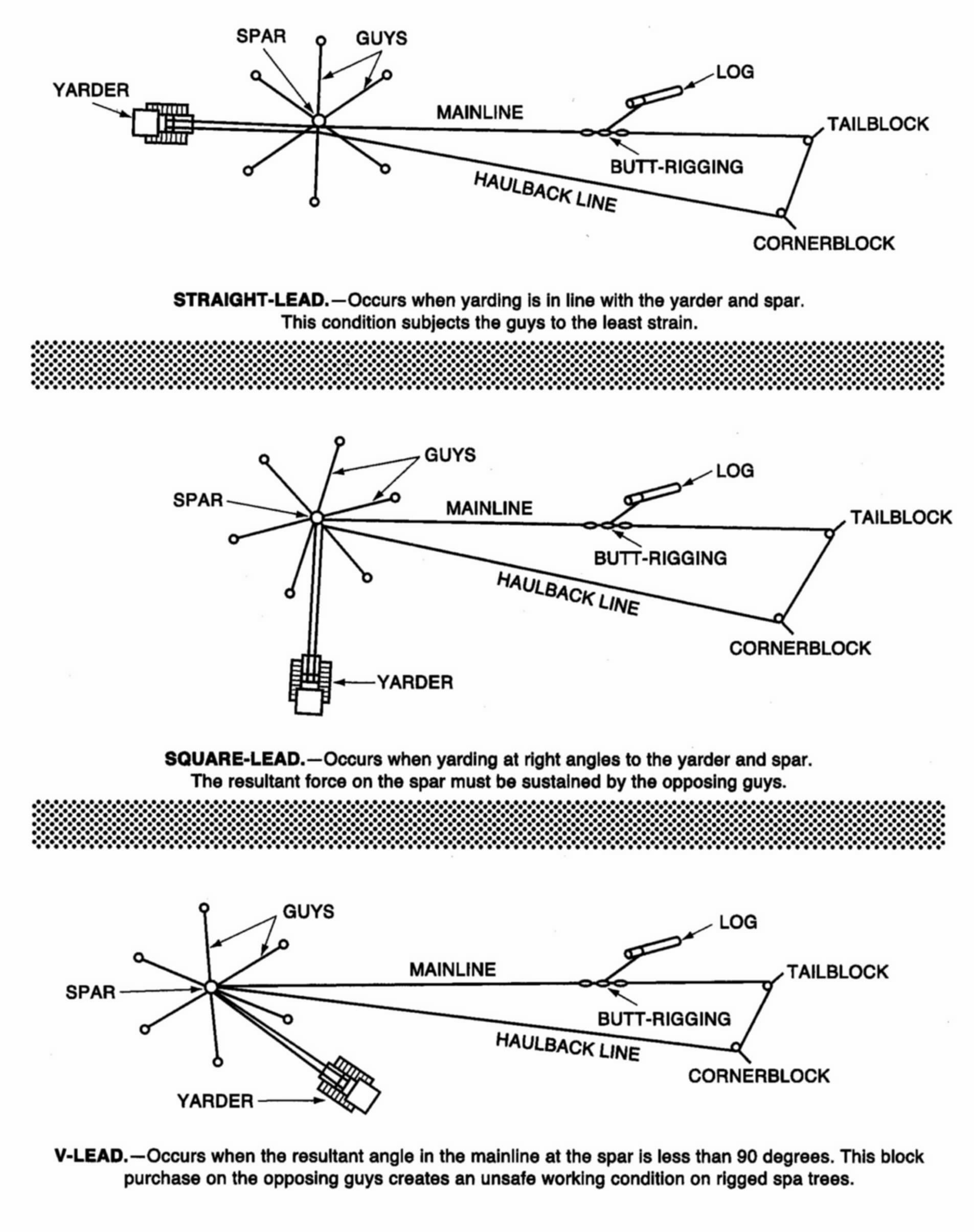

Click here to view imageThree Types Of Leads In Highlead Logging (Plan View)

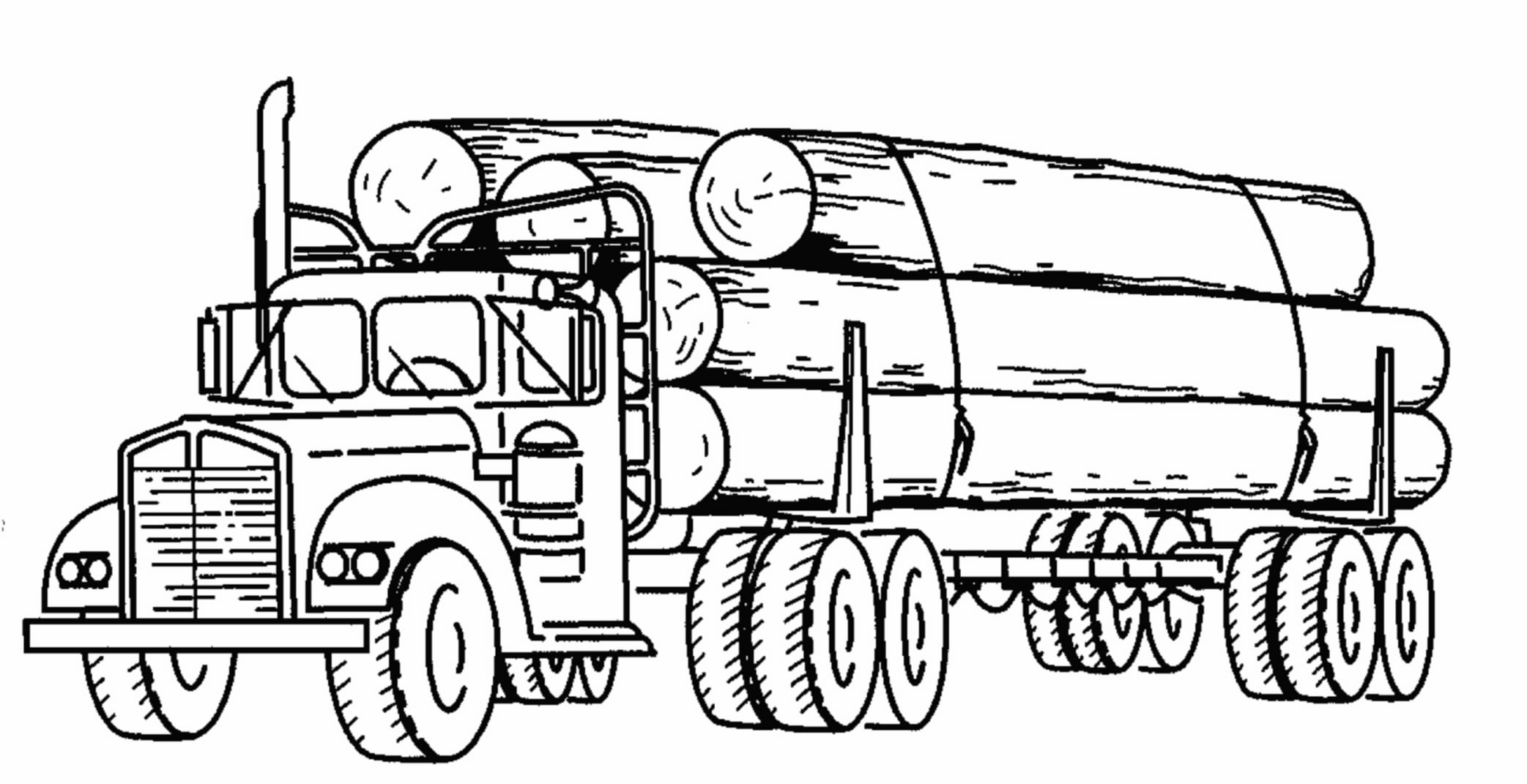

Click here to view imageLOGGING TRUCK LOADING
